Ultimate Guide to Custom Overmolded Wire Harness Solutions for Harsh Environments
When engineering robust electrical systems for industrial, medical, or automotive applications, the durability of your connections is just as critical as the components themselves. A custom overmolded wire harness is the ultimate solution for protecting vulnerable termination points from mechanical stress, moisture, dust, and harsh environmental conditions.
As a professional custom wiring harness manufacturer, we understand that off-the-shelf cables often fail to meet the rigorous demands of specialized B2B projects. This comprehensive guide will explore the overmolding process, technical specifications, and why investing in a custom overmolded wire harness is essential for your next engineering project.
What is a Custom Overmolded Wire Harness?

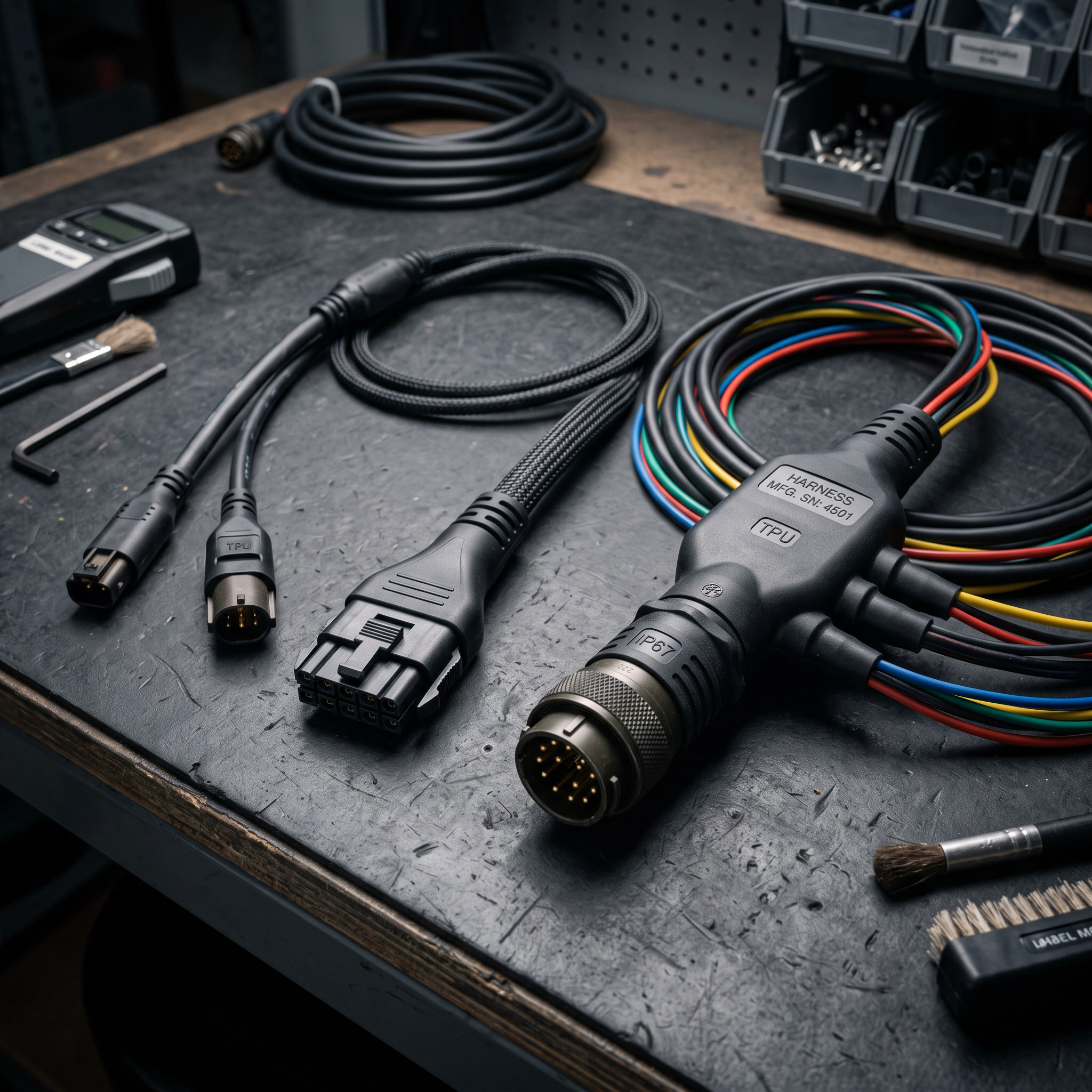

A custom overmolded wire harness is an advanced electrical cable assembly where a thermoplastic material (such as PVC, TPU, or Silicone) is injection-molded directly over the junction between the wires and the connector.
The Working Principle of the Overmolding Process

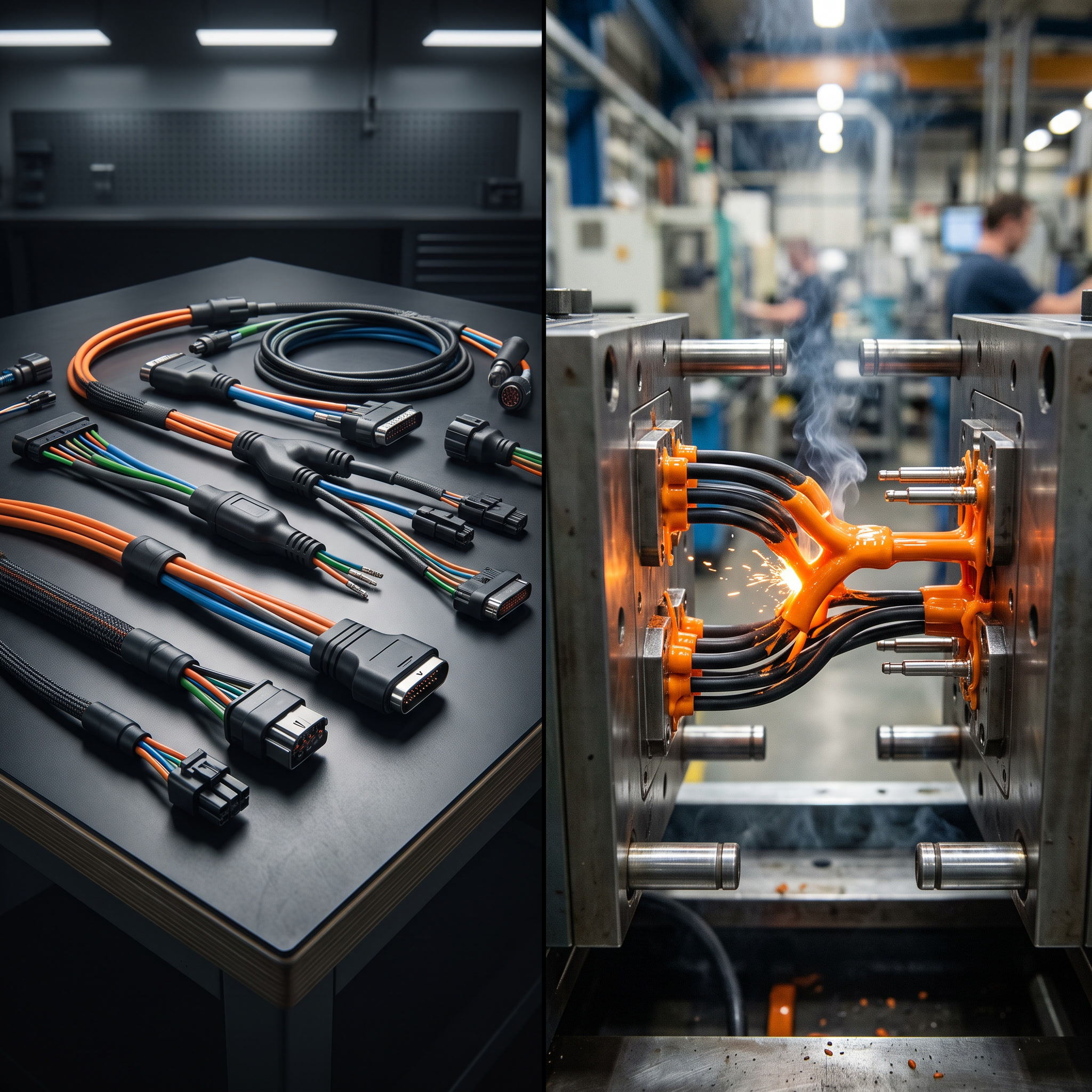

The process begins with standard wire preparation and connector termination (soldering or crimping). The terminated assembly is then placed into a precision-engineered custom mold cavity. Molten thermoplastic material is injected into the mold at high pressure. As the material cools and solidifies, it completely encapsulates the wire-to-connector junction, bonding chemically and mechanically with the cable jacket and connector shell. The result is a seamless, single-piece custom overmolded wire harness that offers unparalleled structural integrity.
Key Features & Advantages of the Overmolding Process
Why do hardware engineers and product managers prefer a custom overmolded wire harness over traditional heat-shrink tubing or backshells? The advantages are strictly performance-driven:
- Superior Strain Relief: The overmolding process significantly increases the flex life of the cable assembly. It absorbs the tension and stress that occur when cables are pulled or bent, preventing wire breakage at the connector joint.
- IP-Rated Waterproofing & Dustproofing: By creating a hermetic seal, overmolded connectors can easily achieve IP67 or IP68 ratings, making them impervious to water, oil, dust, and chemicals.
- Enhanced Mechanical Strength: The injection-molded resin provides incredible resistance to abrasion, shock, and vibration, which is crucial for heavy machinery and automotive applications.
- Custom Aesthetics and Branding: Overmolding allows for custom colors to match corporate branding or color-coding for complex wiring systems. We can also embed custom logos directly into the overmold tooling.
Classifications and Technical Specifications
To meet the diverse requirements of B2B buyers, a custom overmolded wire harness can be tailored in virtually every aspect. Below is a structured specification table detailing our capabilities as a leading custom wiring harness manufacturer.
| Technical Parameter | Available Specifications / Options | Description & Application |
|---|---|---|
| Wire Gauge (AWG) | 10 AWG to 32 AWG | From heavy-duty power transmission to delicate sensor data lines. |
| Overmold Materials | PVC, TPU, TPE, Silicone, Macromelt | TPU for high abrasion, PVC for cost-efficiency, Silicone for medical/high-temp. |
| Connector Types | Circular (M8/M12), D-Sub, USB, RJ45, Molex, TE, Custom | Compatible with standard and proprietary interfaces. |
| IP Protection Rating | IP65, IP67, IP68, IP69K | Ensures survival in submerged, high-pressure washdown, or dusty environments. |
| Operating Temperature | -40°C to +200°C (Material dependent) | Adapts to extreme freezing conditions or high-heat engine bays. |
| Cable Jacket Options | PUR, PVC, Teflon (PTFE), Halogen-free (LSZH) | Tailored for flexibility, flame retardancy, and chemical resistance. |
Core Application Scenarios
The versatility of a custom overmolded wire harness makes it an indispensable component across various demanding industries:
1. Industrial Control & Automation

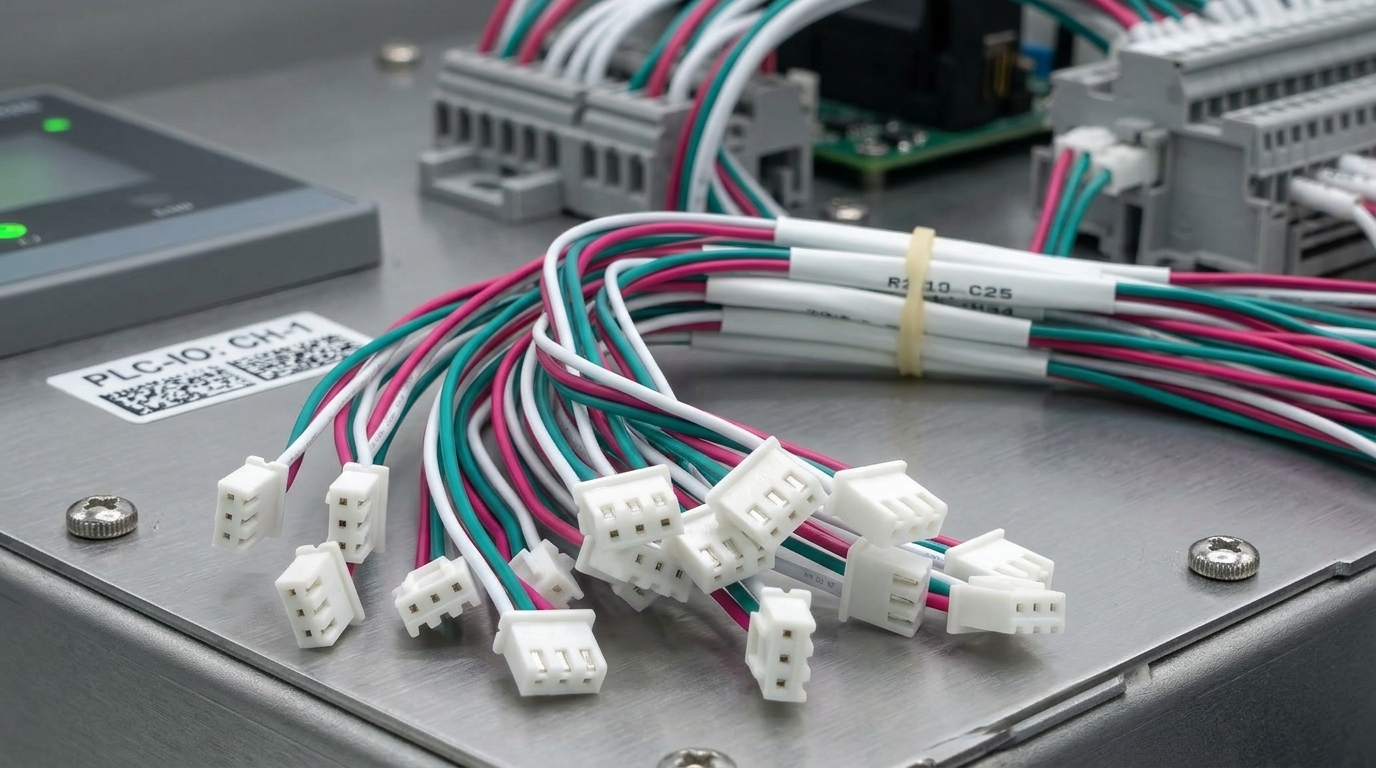

In factory automation, robotic arms, and CNC machines, cables face continuous flexing and exposure to cutting fluids. Overmolded M8/M12 connectors provide the robust strain relief and IP67 protection necessary to ensure zero downtime in industrial control systems.
2. Automotive & New Energy Vehicles (NEV)
Automotive environments involve extreme vibrations, temperature fluctuations, and exposure to oil and grease. A custom overmolded wire harness guarantees secure sensor connections, battery management system (BMS) wiring, and heavy-duty power distribution in electric vehicles.
3. Medical Equipment
For patient monitoring systems and surgical tools, reliability and biocompatibility are non-negotiable. Using medical-grade silicone overmolding ensures the harnesses can withstand repeated sterilization (autoclaving) while providing a soft, flexible, and safe interface.
4. Consumer Electronics & Telecommunications
From ruggedized outdoor networking equipment to specialized smart devices, overmolded cable assemblies deliver the sleek aesthetic and tamper-proof durability that high-end consumer and telecom products require.
Why Choose Us as Your Custom Wiring Harness Manufacturer?
Selecting the right partner is crucial for the success of your hardware project. As an experienced custom wiring harness manufacturer, we bridge the gap between complex engineering requirements and scalable mass production. Here is how we empower your supply chain:
- ISO9001 Certified Quality: Every custom overmolded wire harness we produce undergoes rigorous quality control, including electrical testing, pull-force testing, and continuity checks, ensuring 100% reliability and compliance with international standards.
- Comprehensive OEM/ODM Capabilities: We do more than just build to print. Our experienced engineering team offers full DFM (Design for Manufacturability) support, helping you optimize your mold designs and select the right thermoplastic materials to reduce costs and improve performance.
- Low MOQ Support: We understand that R&D projects and specialized equipment manufacturers may not need tens of thousands of pieces initially. We proudly support Low MOQ (Minimum Order Quantity) for custom tooling and trial orders to help you test the market without heavy upfront inventory risks.
- Rapid Prototyping & Fast Turnaround: With in-house tooling capabilities and an agile supply chain, we significantly reduce the lead time from initial 3D drawing to the final physical prototype.
Let's Build Your Custom Overmolded Wire Harness
Don't let poor cable terminations compromise your expensive equipment. Whether you need a complex multi-branch harness for an electric vehicle or a ruggedized waterproof connector for an industrial sensor, a custom overmolded wire harness is the ultimate guarantee of performance and longevity.
Are you looking for a reliable custom wiring harness manufacturer to bring your vision to life?
[Contact Our Engineering Team Today] – Send us your drawings or technical requirements, and let us provide a competitive quote and professional design feedback within 24 hours!
